TIF600G Silicone Thermal Pads Thermal Conductive Gap Filler For Car Battery And Power Supply
Product descriptions

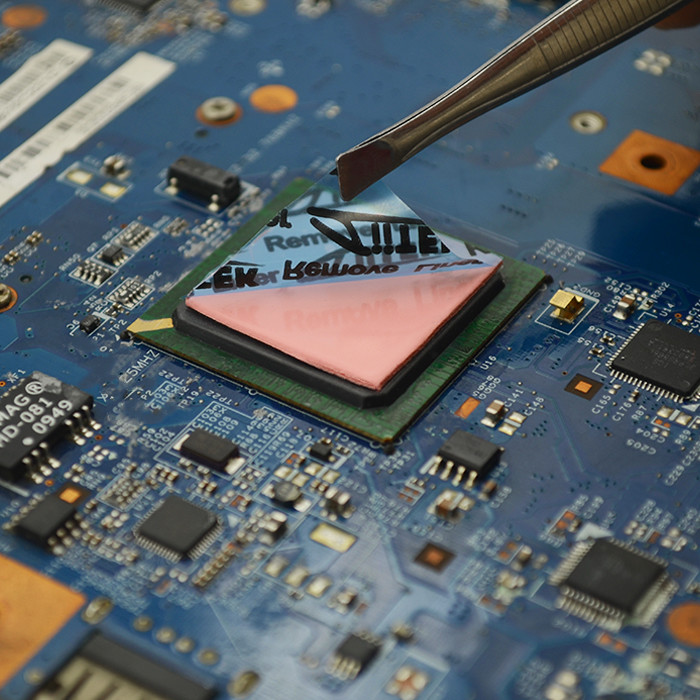

TlF600G series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductivity 6.2W/mK
> Naturally tacky needing no furtheradhesive coating
> Soft and Compressible for low stress application
> Available in varies thickness
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
Application
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Heat pipe thermal solutions
> Memory Modules
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
| Typical Properties of TIF600G Series |
| Color | Garnet | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020"~0.200"(0.50~5.0mm) | ASTM D374 |
| Hardness | 45±5 (Shore 00) | ASTM 2240 |
| Specific Gravity | 3.4g/cc | ASTM D297 |
| Continuos Use Temp(℃) | -45~200℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.5 MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X10¹² Ohm-meter | ASTM D257 |
| Thermal conductivity | 6.2W/m-K | ASTM D5470 |
| Flame Rating | V-0 | UL 94 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm),Individual die cut shapesand and custom thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online.
|
|

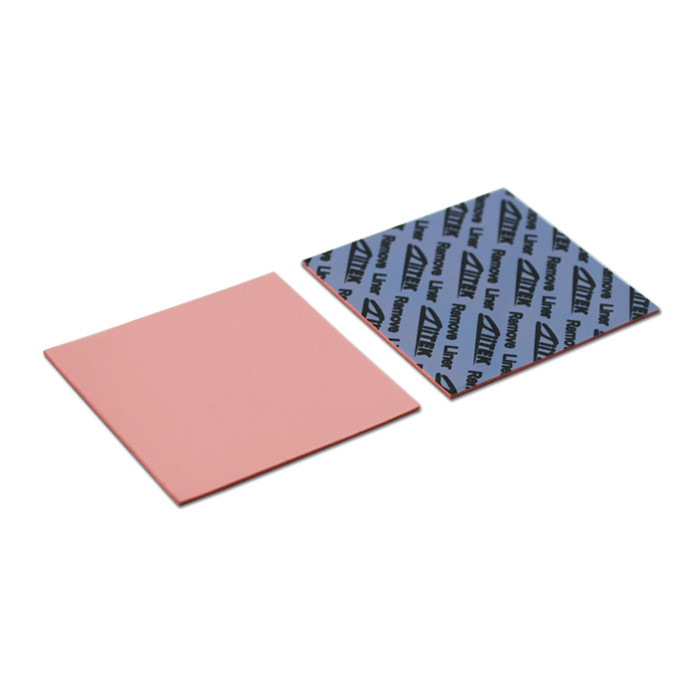

TIF600G Silicone Thermal Pads Thermal Conductive Gap Filler For Car Battery And Power Supply Images
|
